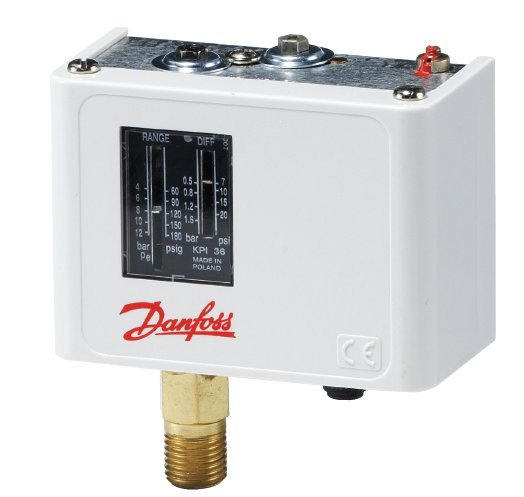

DANFOSS Pressure switch, KP36 060-216066
Regulation range [bar] Pe: 1.00 - 10.50,

Differential [bar]: 0.70,

Reset function: Manual

Pressure connection type: G,

Pressure connection size: 1/2,

Enclosure rating IP: IP30,

Max. Working Pressure [bar]: 17.0

DANFOSS Pressure switch KP1

Regulation range [bar] Pe: -0.20 - 7.50,

Differential [bar]: 0.70 - 4.00,

Contact function: SPDT, Reset function: Auto,

Pressure connection type: Flare,

Pressure connection size: 1/4,

Pressure Male/Female: Male,

Enclosure rating IP: IP44,

Max. Working Pressure [bar]: 17.0

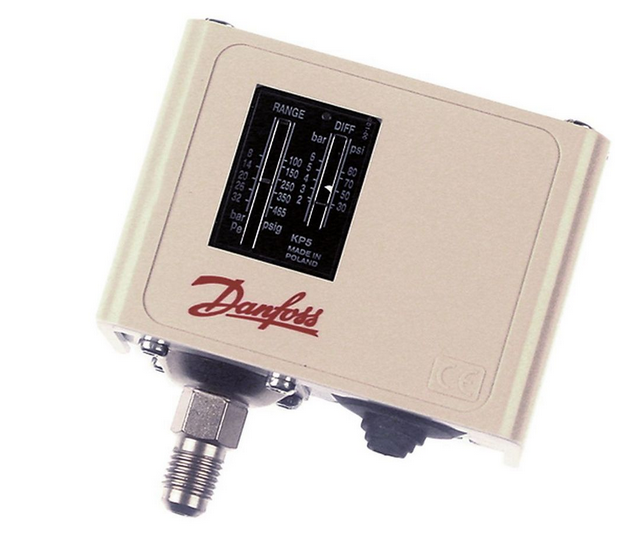

DANFOSS Pressure switch KP5

Regulation range [bar] Pe: 8.00 - 32.00,

Differential [bar]: 1.80 - 6.00,

Contact function: SPDT,

Reset function: Auto,

Pressure connection type: Flare,

Pressure connection size: 1/4,

Pressure Male/Female: Male,

Enclosure rating IP: IP44, Max.

Working Pressure [bar]: 35.0

Ambient temperature

-40 – 65 °C (80 °C for max. 2 hours).

Ambient temperature (PED approved units)

-25 – 65 °C (80 °C for max. 2 hours).

Max. working pressure

LP: PS/MWP = 17 bar

HP: PS/MWP = 35 bar

KP 6: PS/MWP = 46.5 bar

Max. test pressure

LP: Pe = 20 bar

HP: Pe = 35 bar

KP 6: Pe = 46.5 bar

Contact load

Alternating current

AC1 =16 A, 400 V

AC3 = 16 A, 400 V

AC15 = 10 A, 400 V

Direct current

DC13 = 12 W, 220 V control current

Wire dimensions

solid / stranded

0.75 – 2.5 mm2

flexible, without ferrules

0.7 – 2.5 mm2

flexible, with ferrules

0.5 – 1.5 mm2

Tightening torque

max. 2 Nm

Rated impulse voltage

4 kV

Pollution degree

3

Short circuit protection, fuse

16 A

Insulation

400 V

Enclosure

IP30 / IP44 / IP55
